Contents
Aluminum platform（6063）+22MM Aluminium black heatsink
- The front and back of the module are made of CNC aluminum blocks, the front of the shell is equipped with a black heat sink, and the aluminum platform on the back of the module is in close contact with the shell through silicone grease
- When the CPU temperature of the module reaches 110 degrees Celsius, the protection mechanism will be triggered, and the module will restart

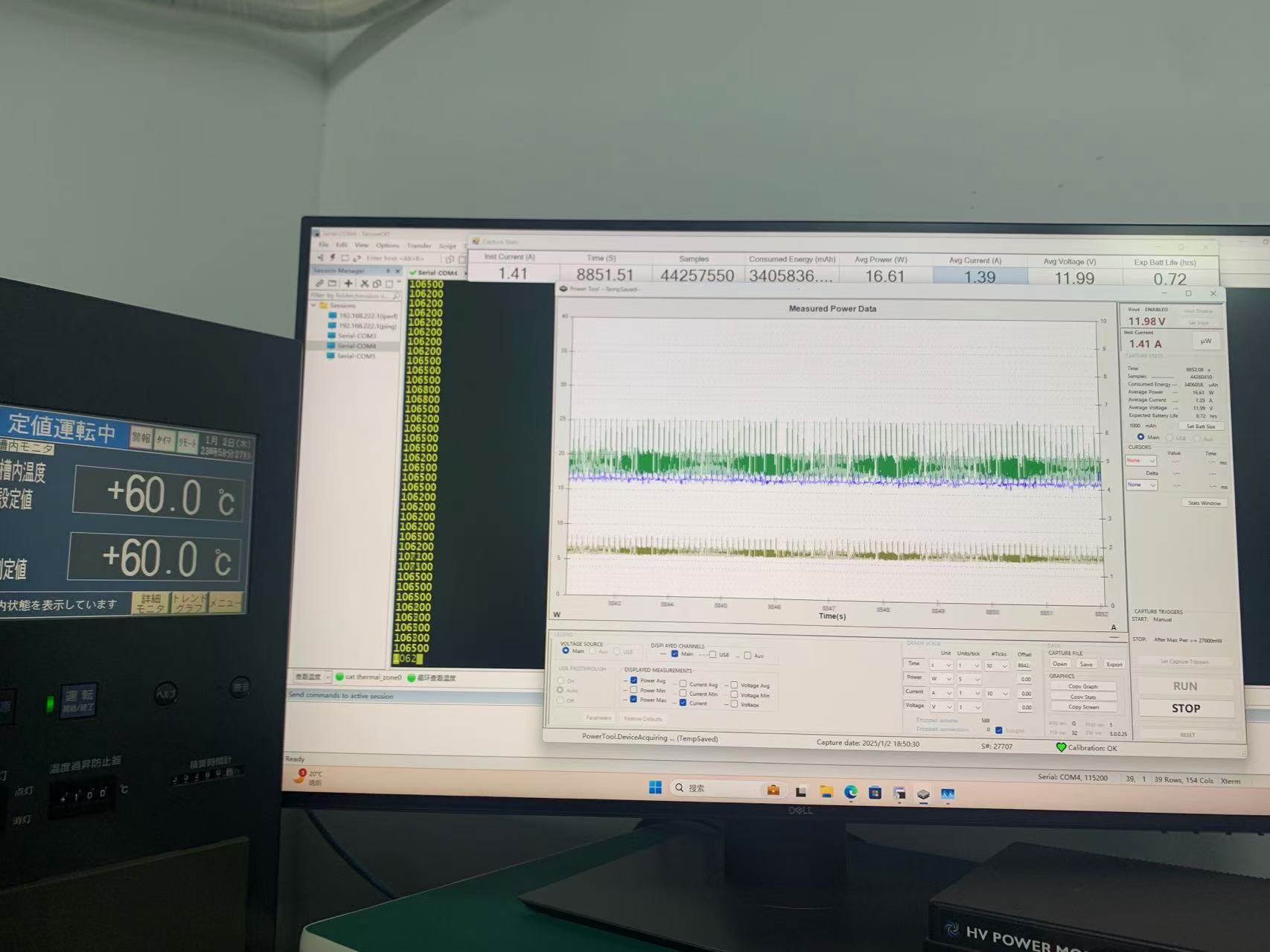

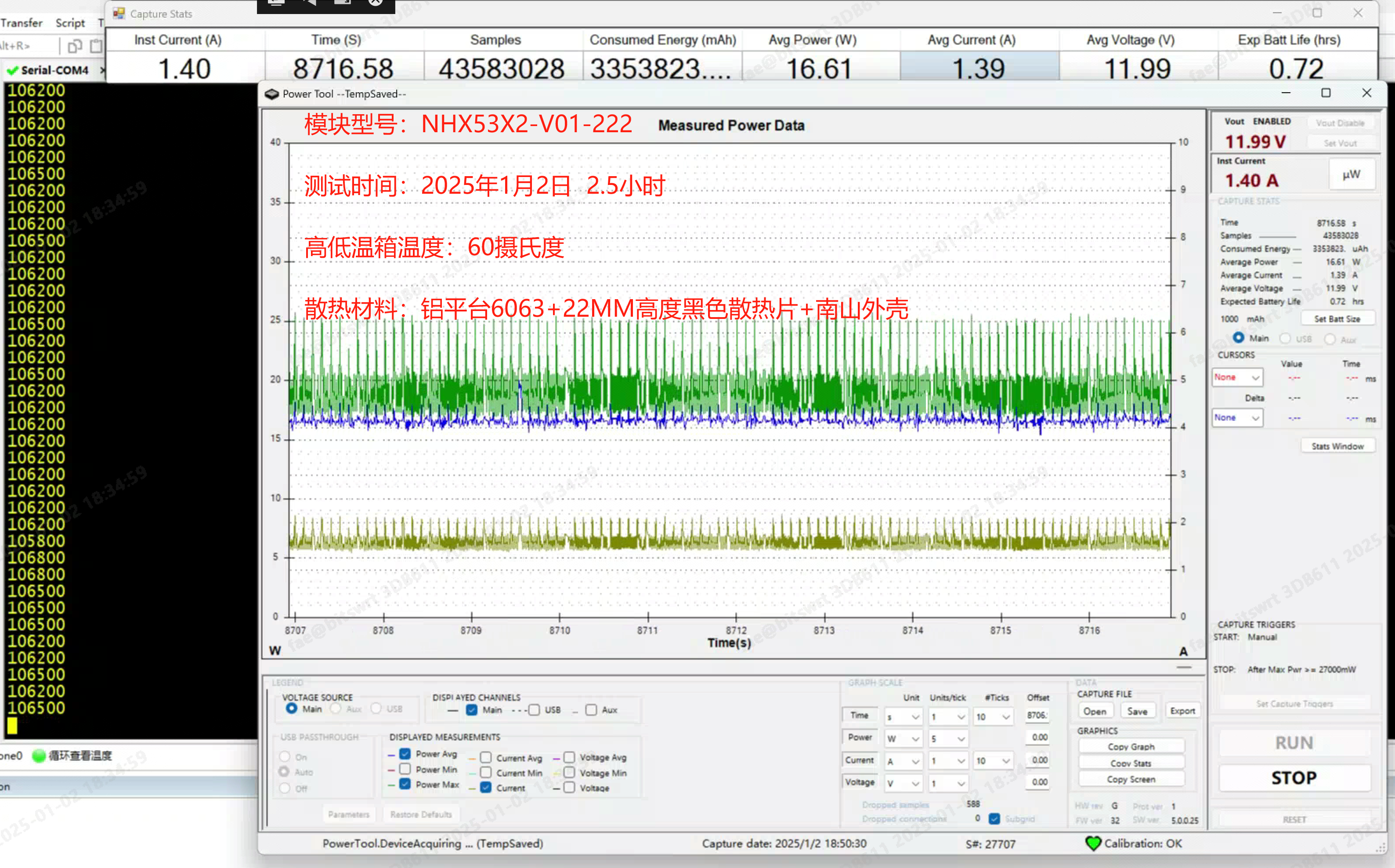

60 degrees Celsius
- Test result: iperf test, CPU temperature 106.8 degrees Celsius, can work normally, no restart

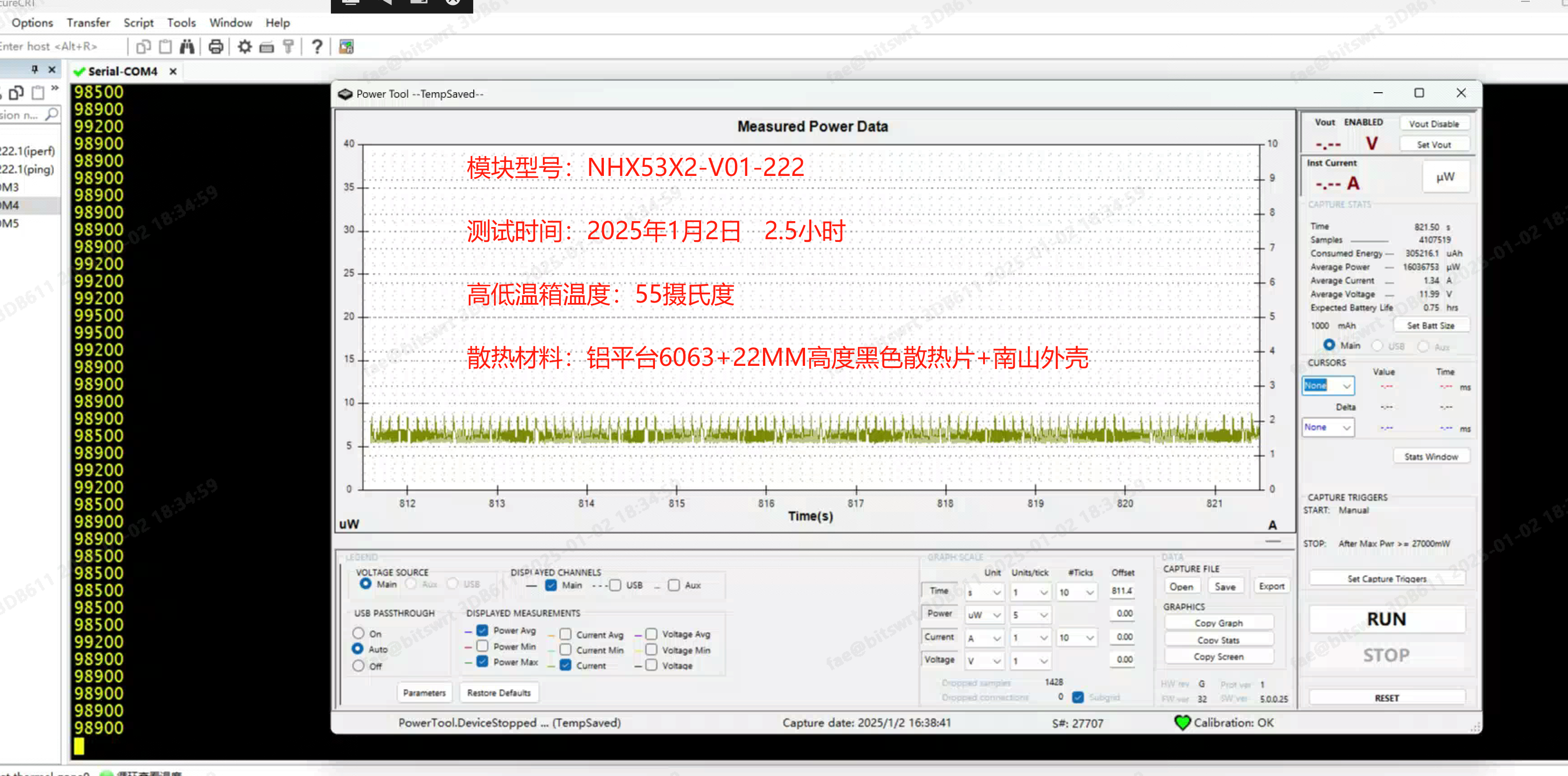

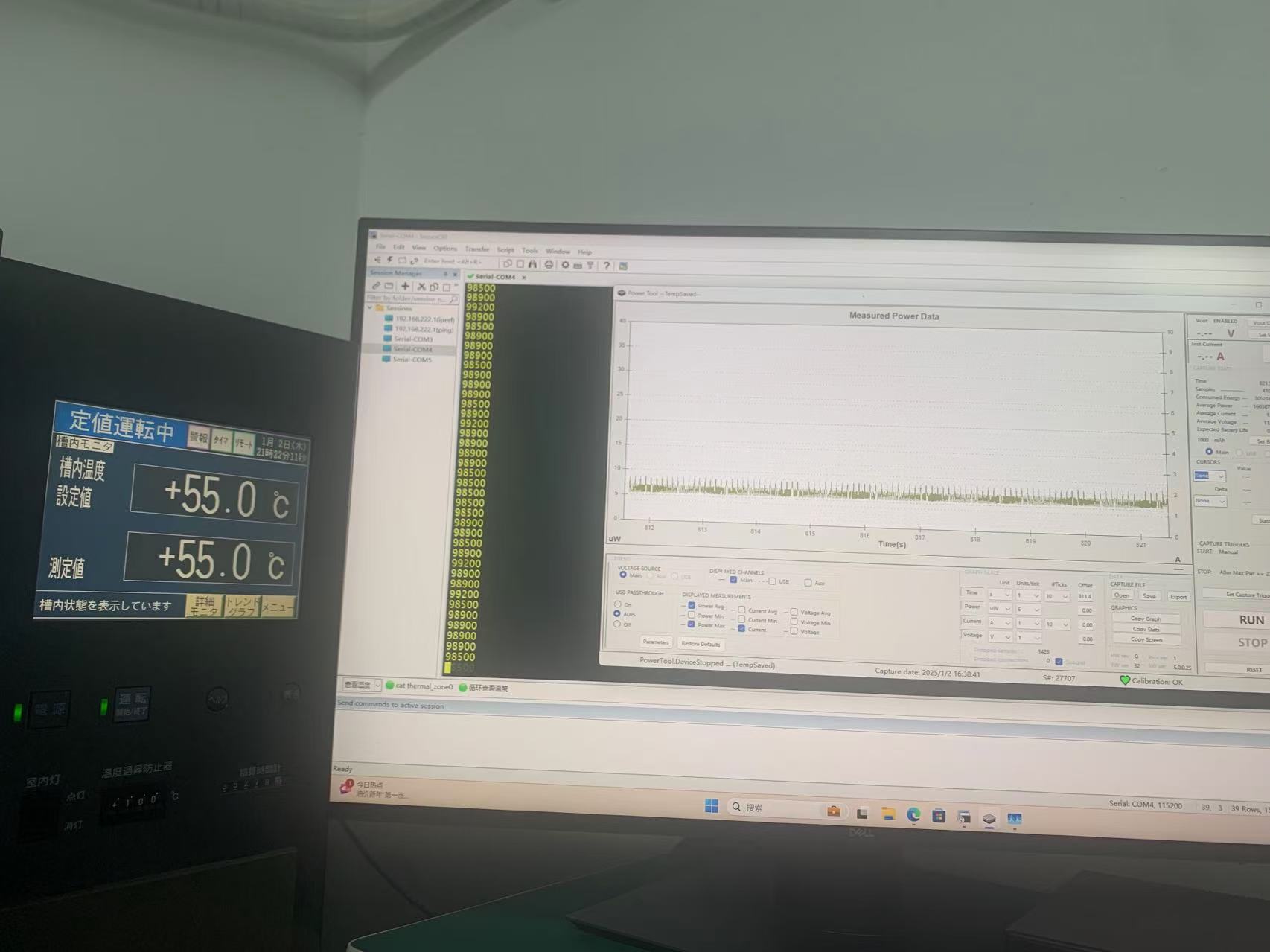

55 degrees Celsius
- Test result: iperf test, CPU temperature 99.2 degrees Celsius, can work normally, no restart

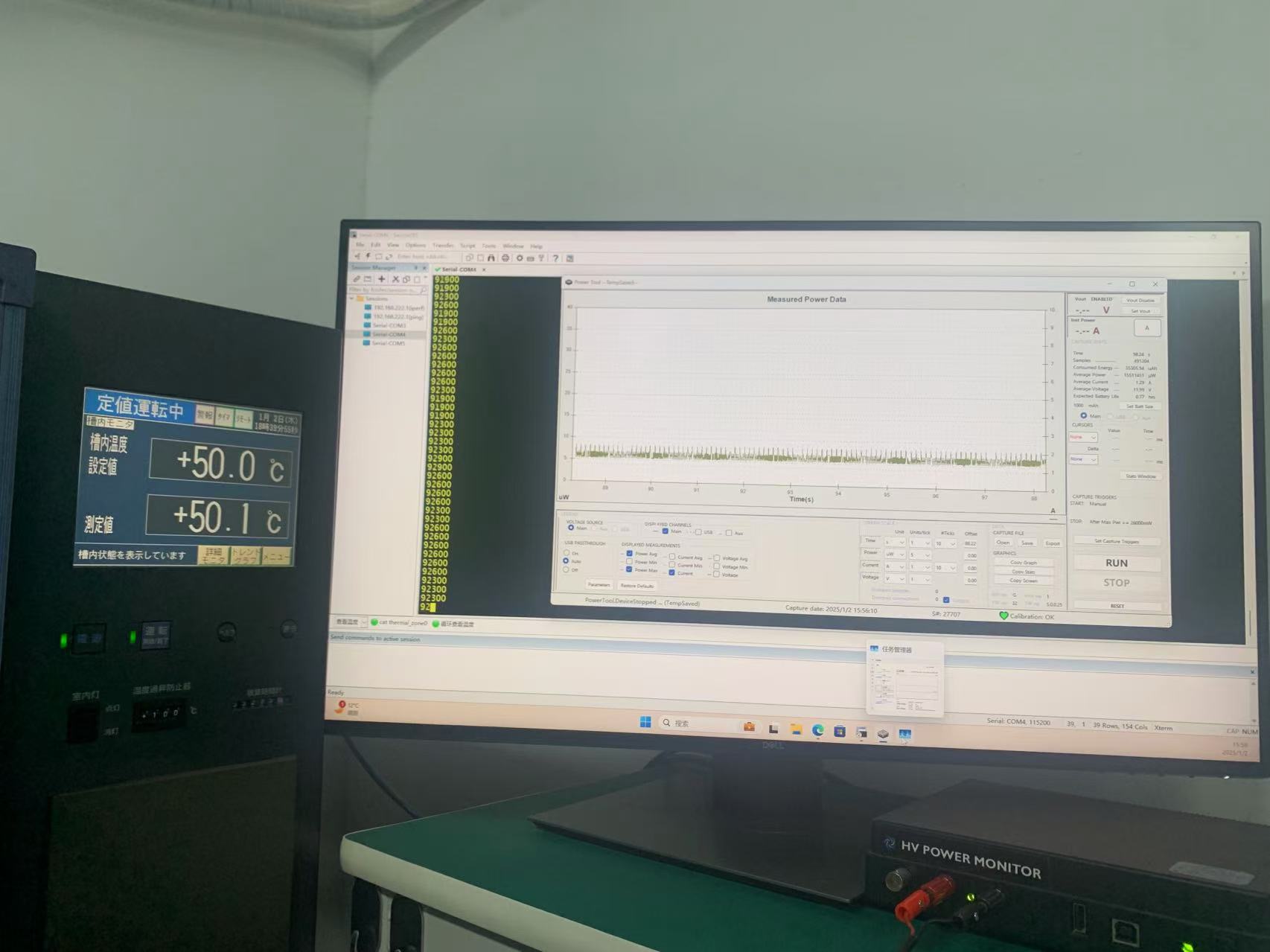

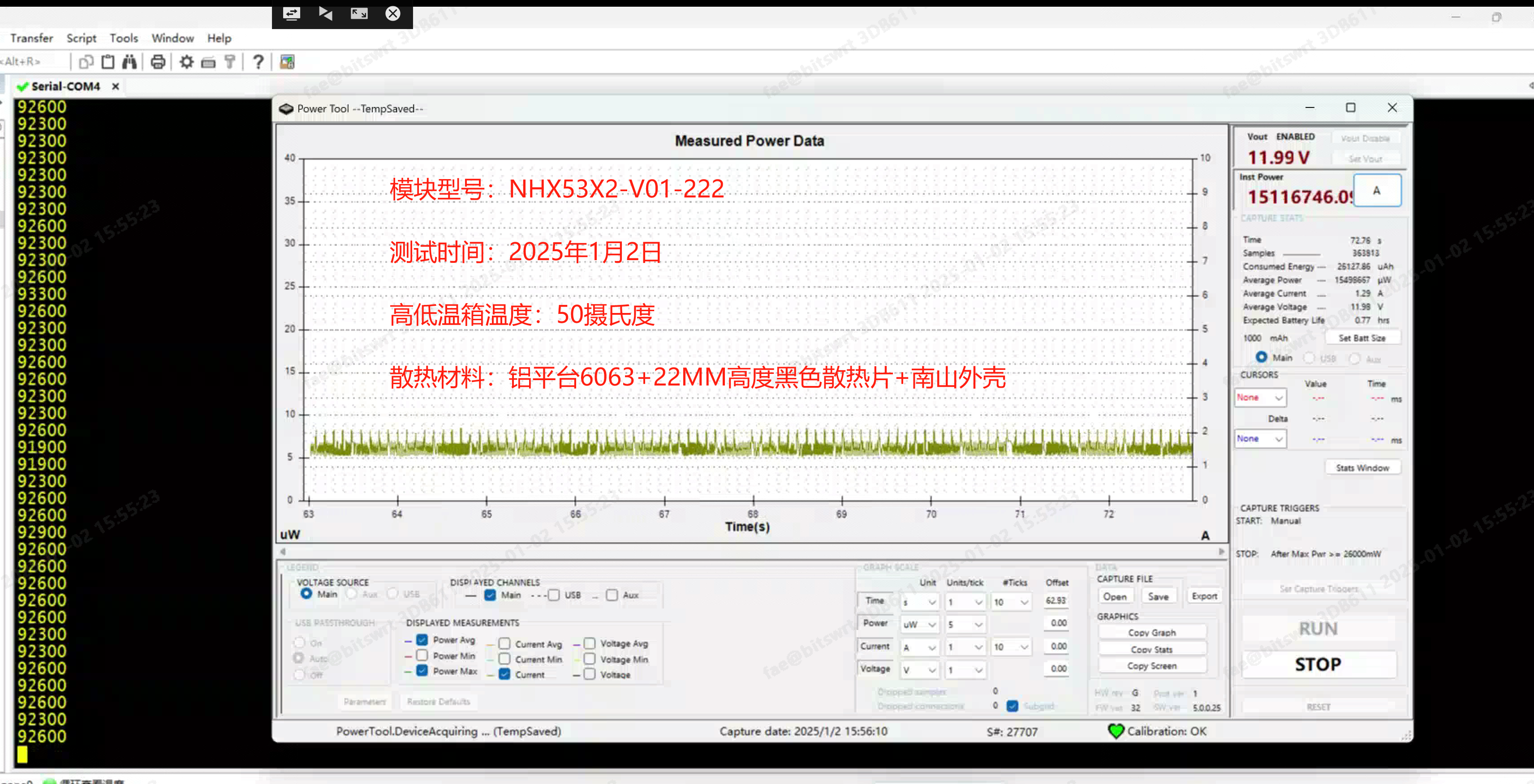

50 degrees Celsius
- Test result: iperf test, CPU temperature 92.6 degrees Celsius, can work normally, no restart
