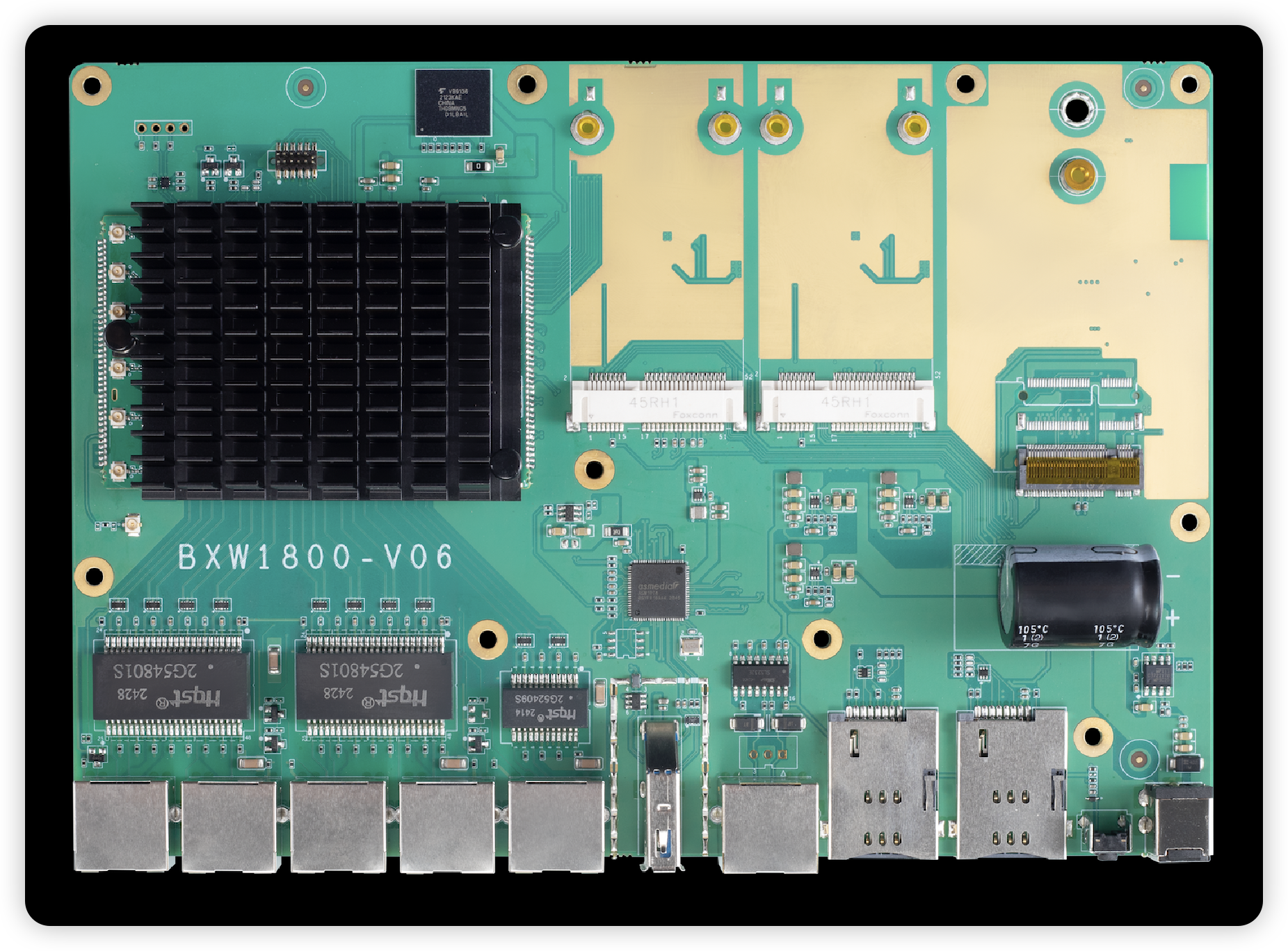

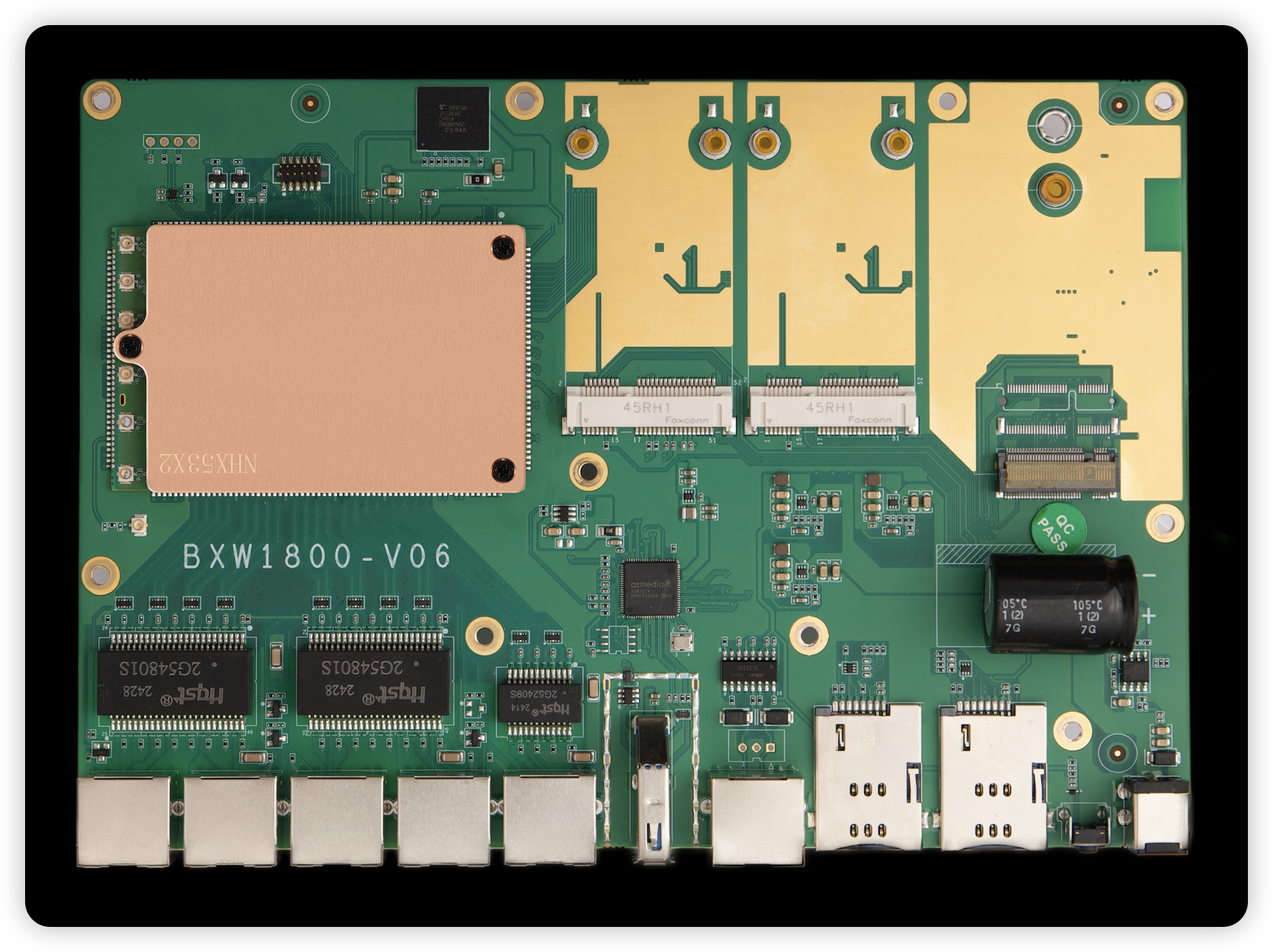

Red copper + aluminum heat sink

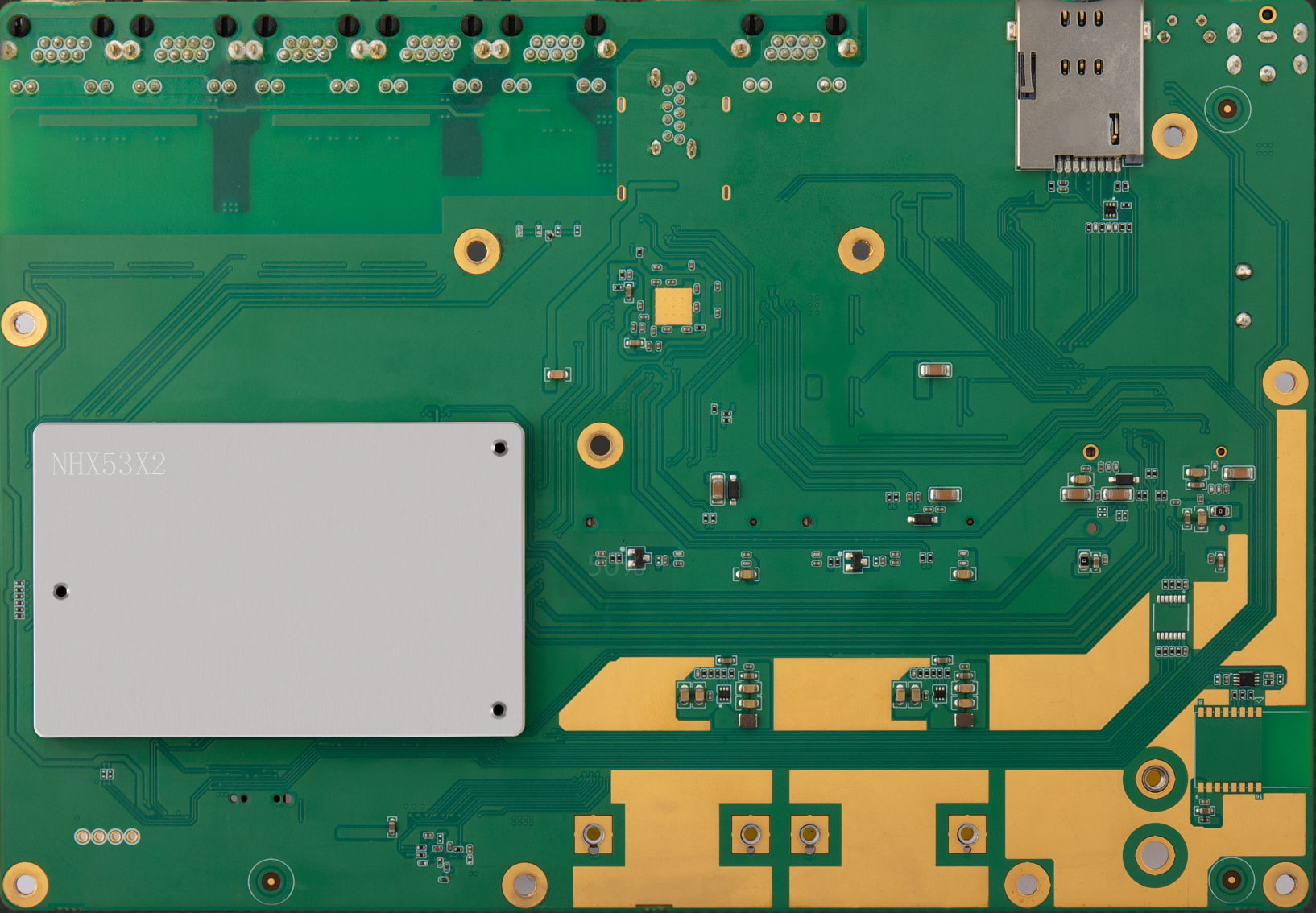

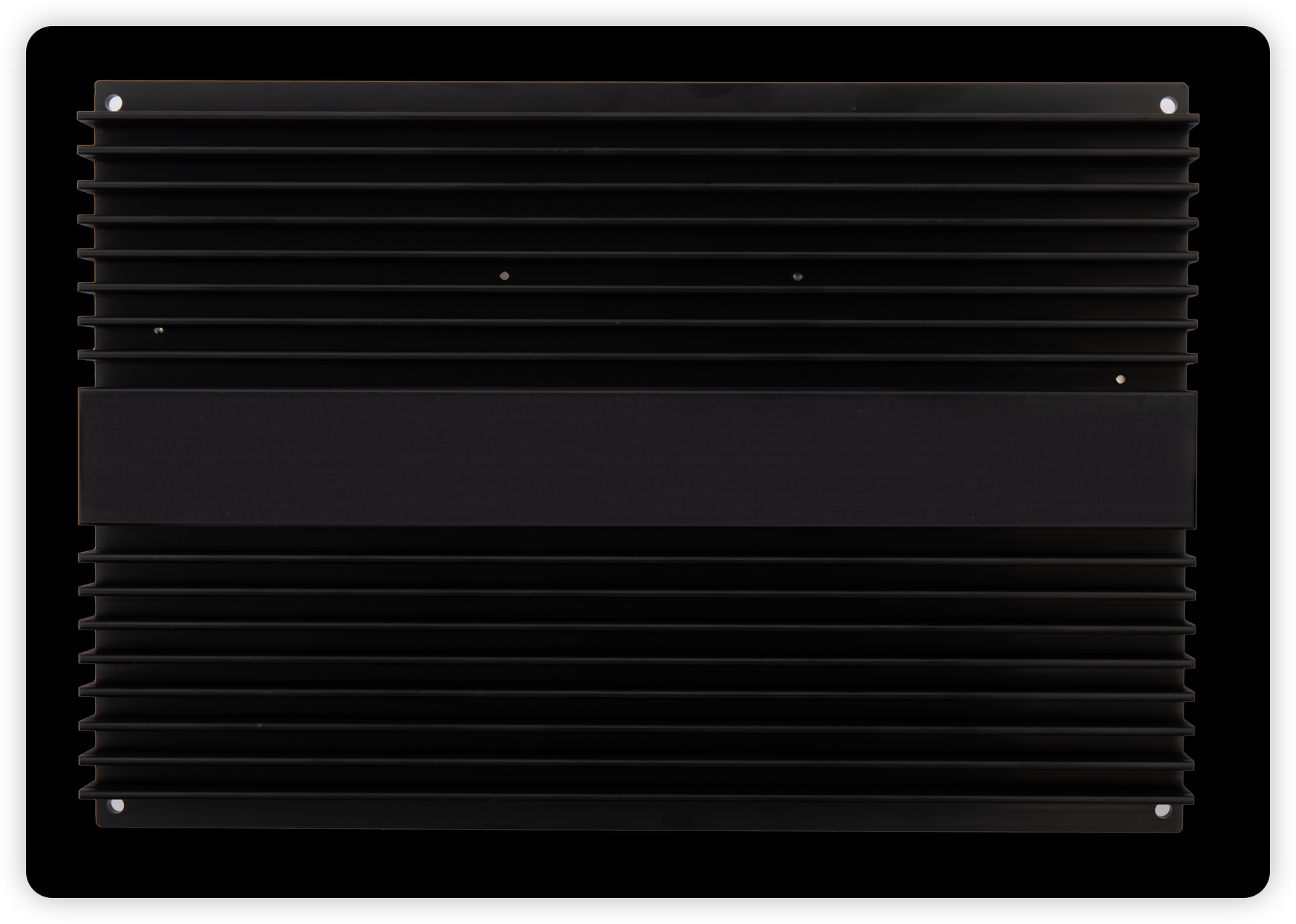

  • The front and back of the module are made of CNC copper blocks,A 20 mm high black heat sink at the bottom of the housing (connected by silicone grease)，A large heat sink of the same size as the shell is installed on the back of the module
  • When the CPU temperature of the module reaches 110 degrees Celsius, the protection mechanism will be triggered, and the module will restart

image.png image.png image.png

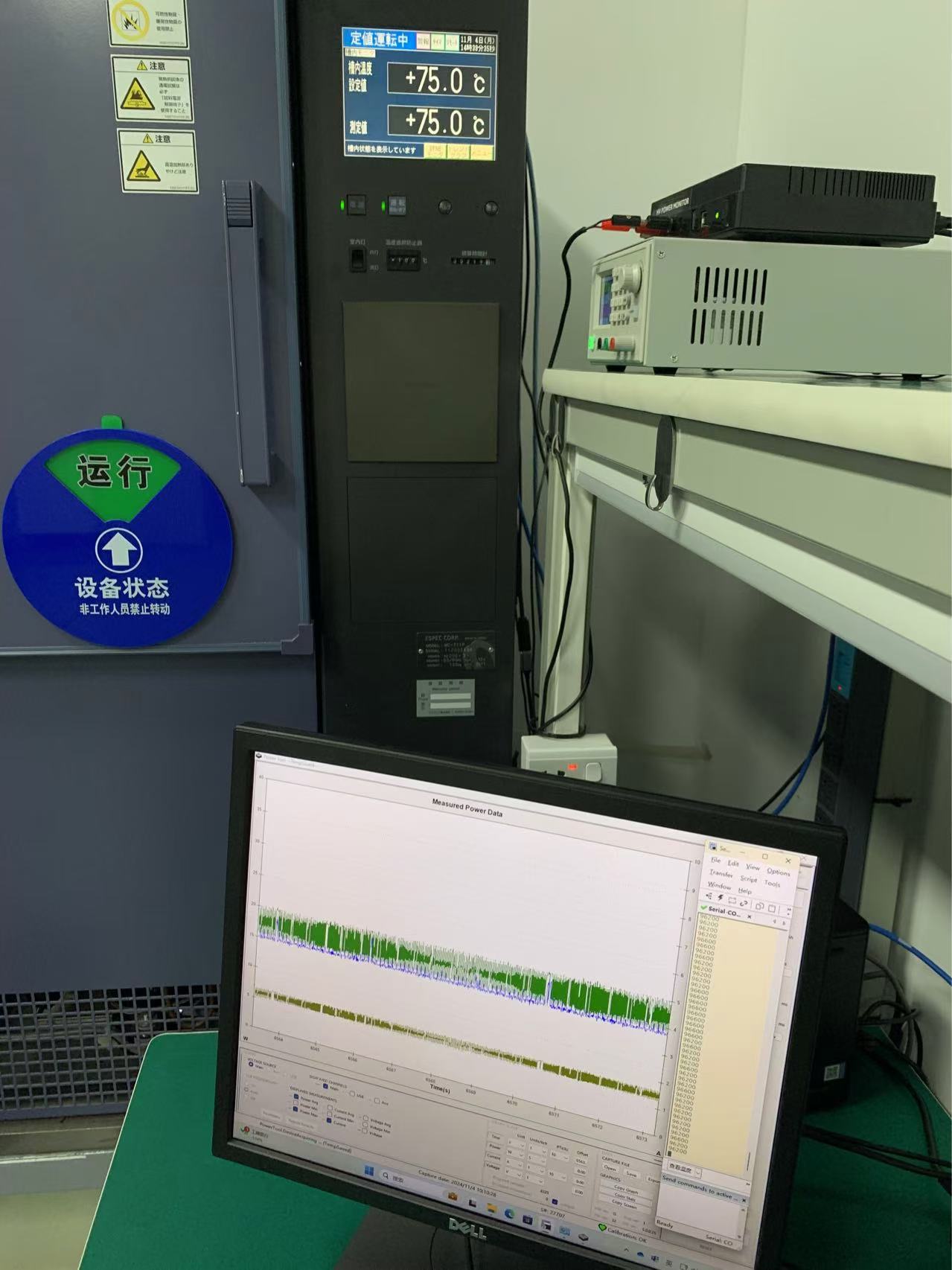

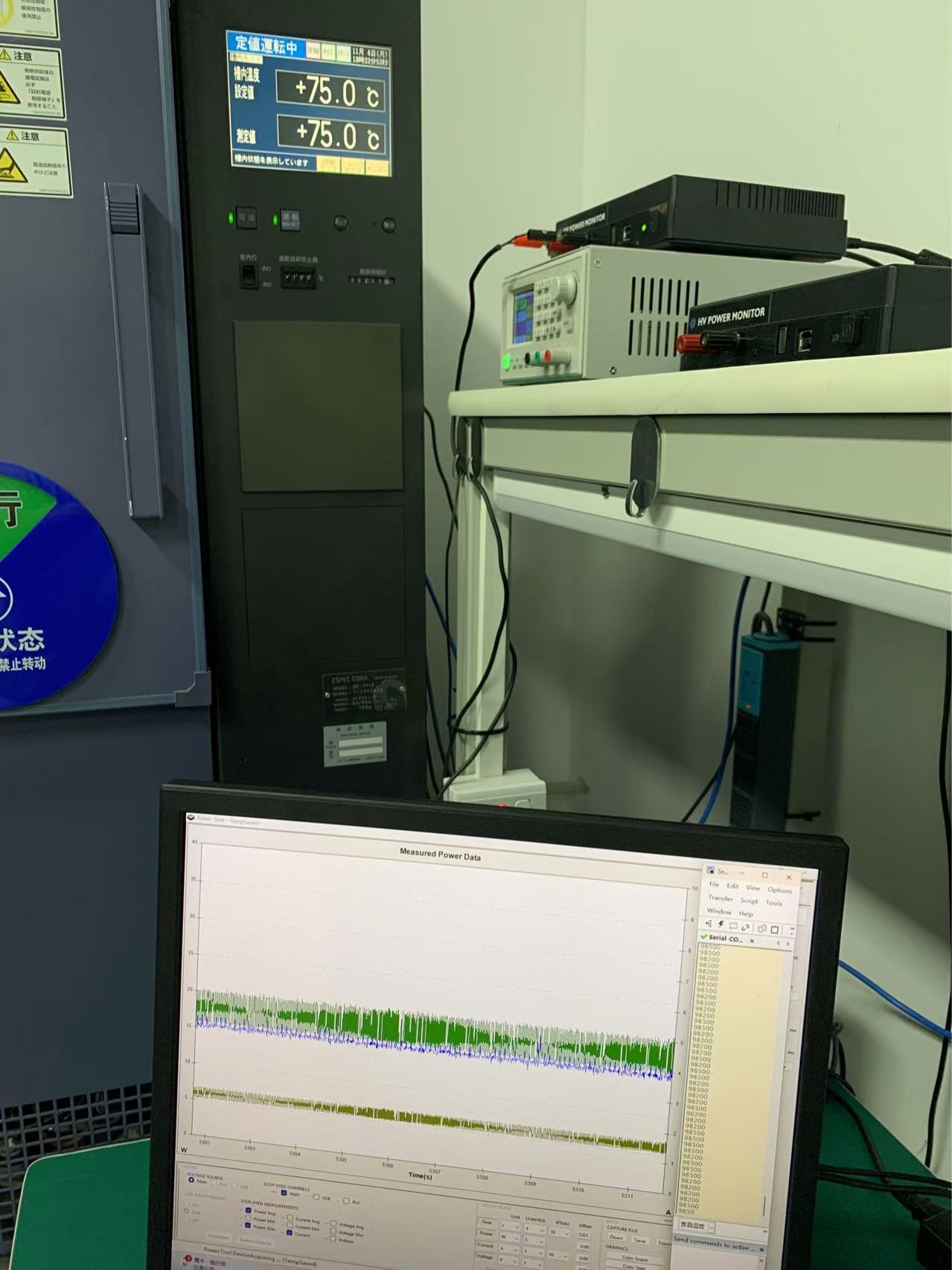

75 degrees Celsius

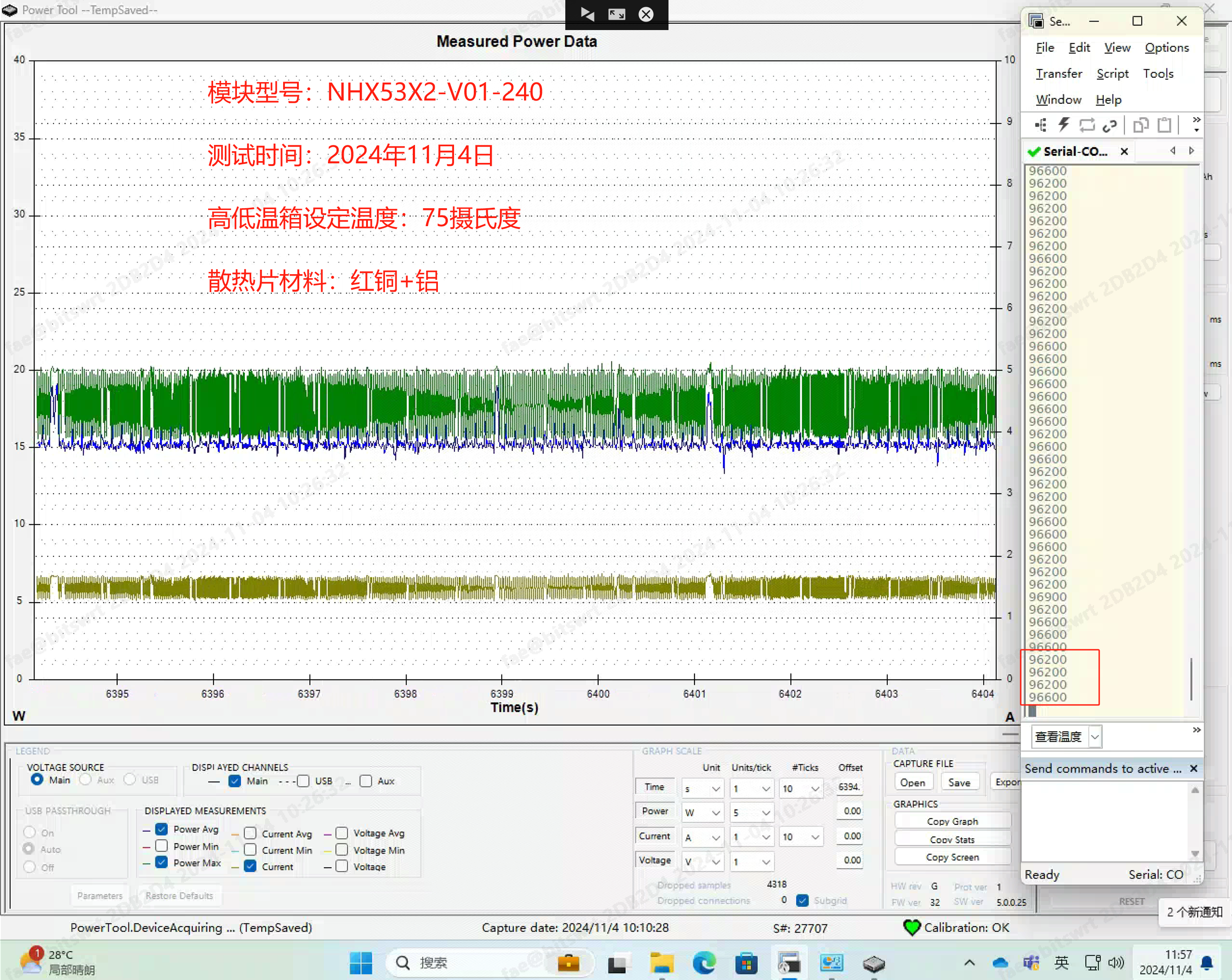

  • Test result: iperf test, CPU temperature 96.2 degrees Celsius, can work normally, no restart

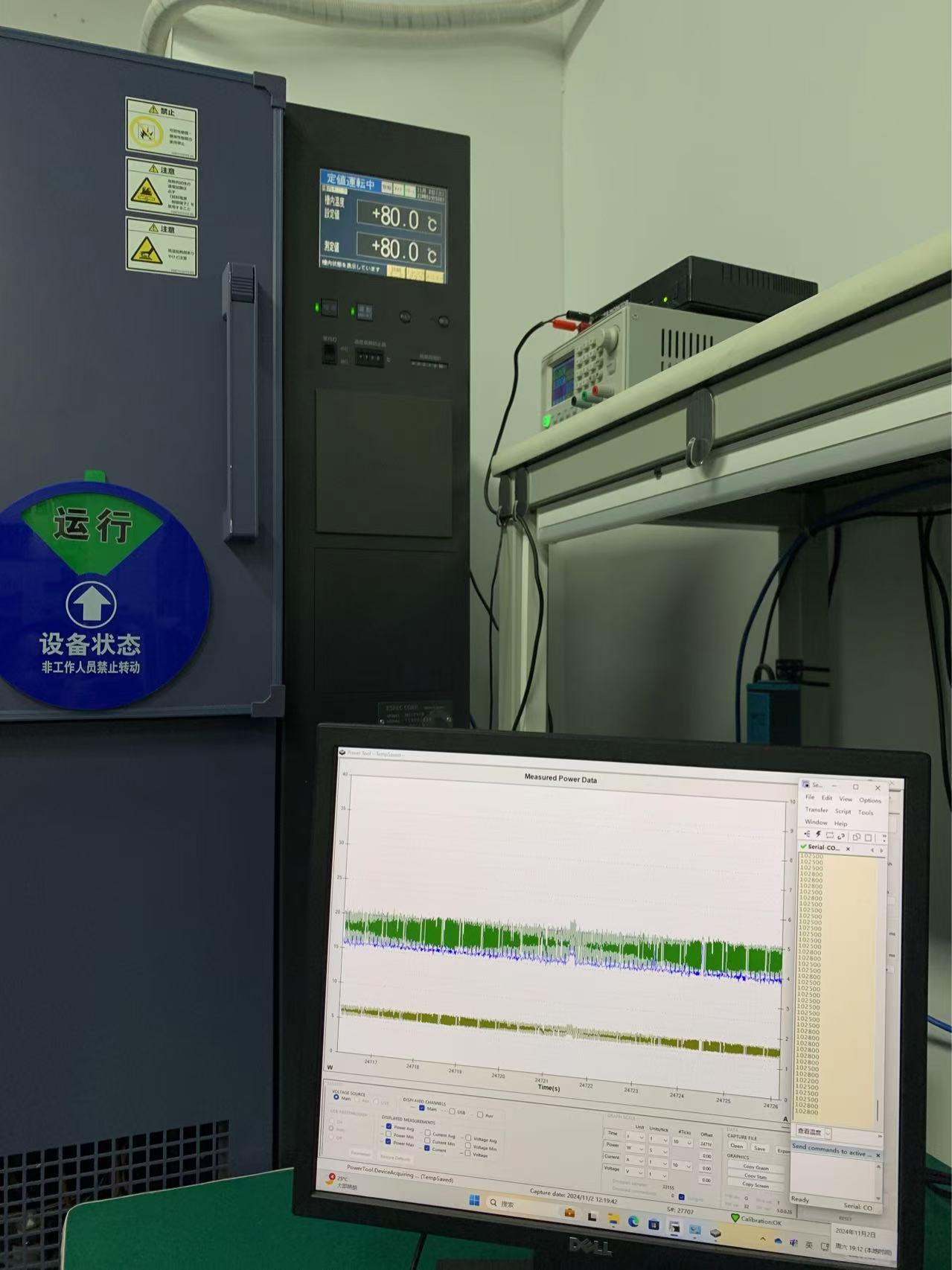

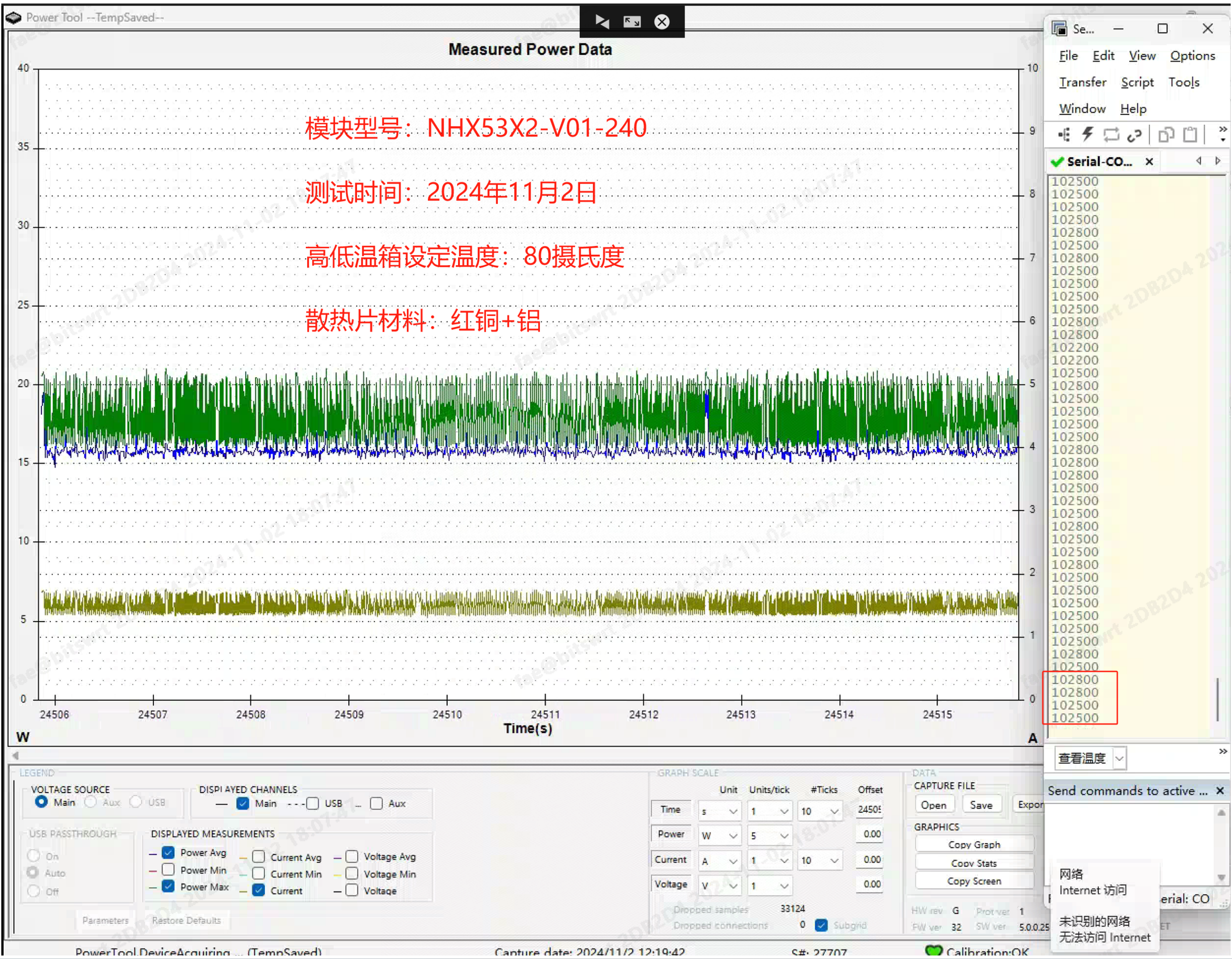

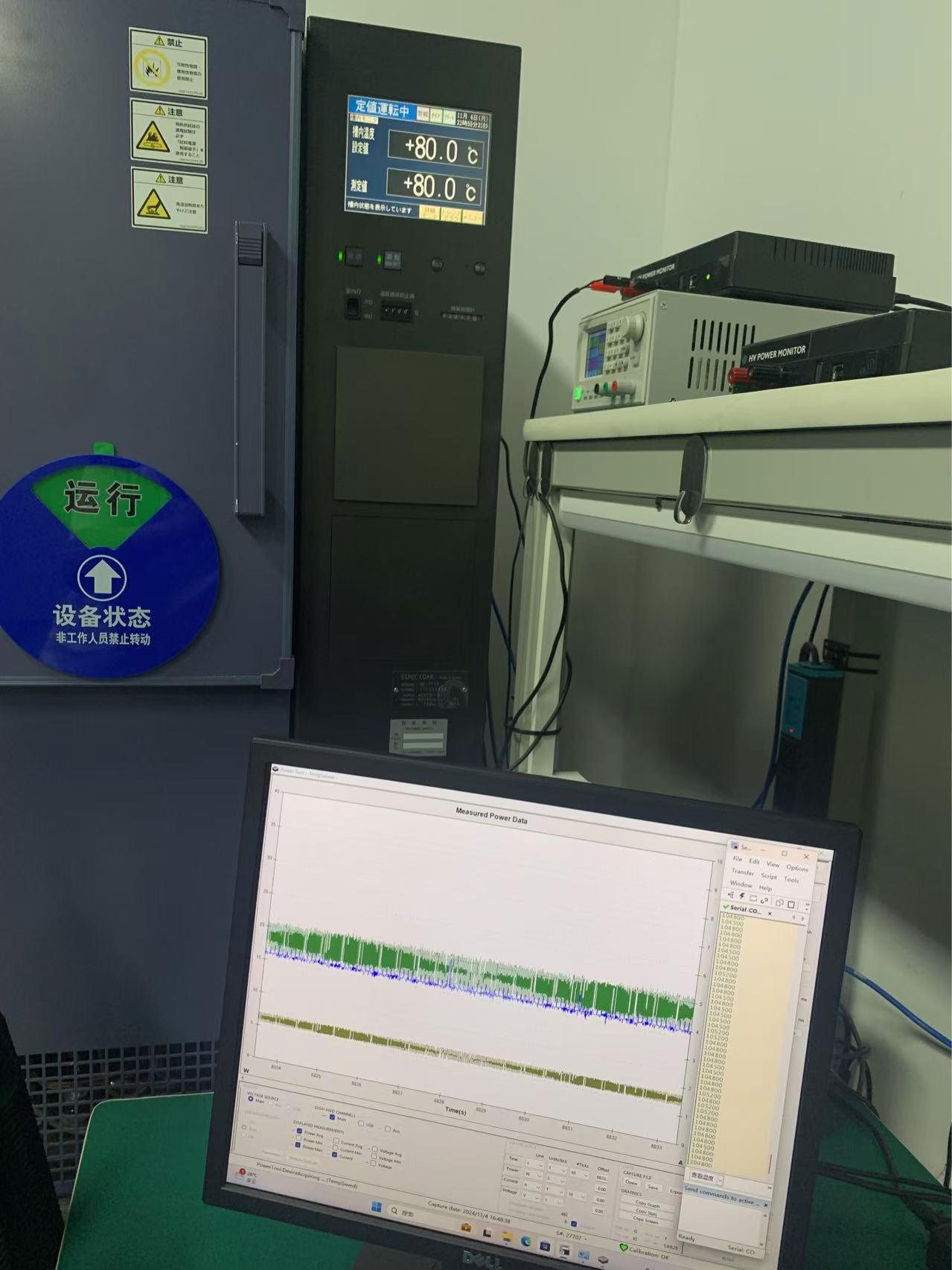

80 degrees Celsius

  • Test result: iperf test, CPU temperature 102.5 degrees Celsius, can work normally, no restart

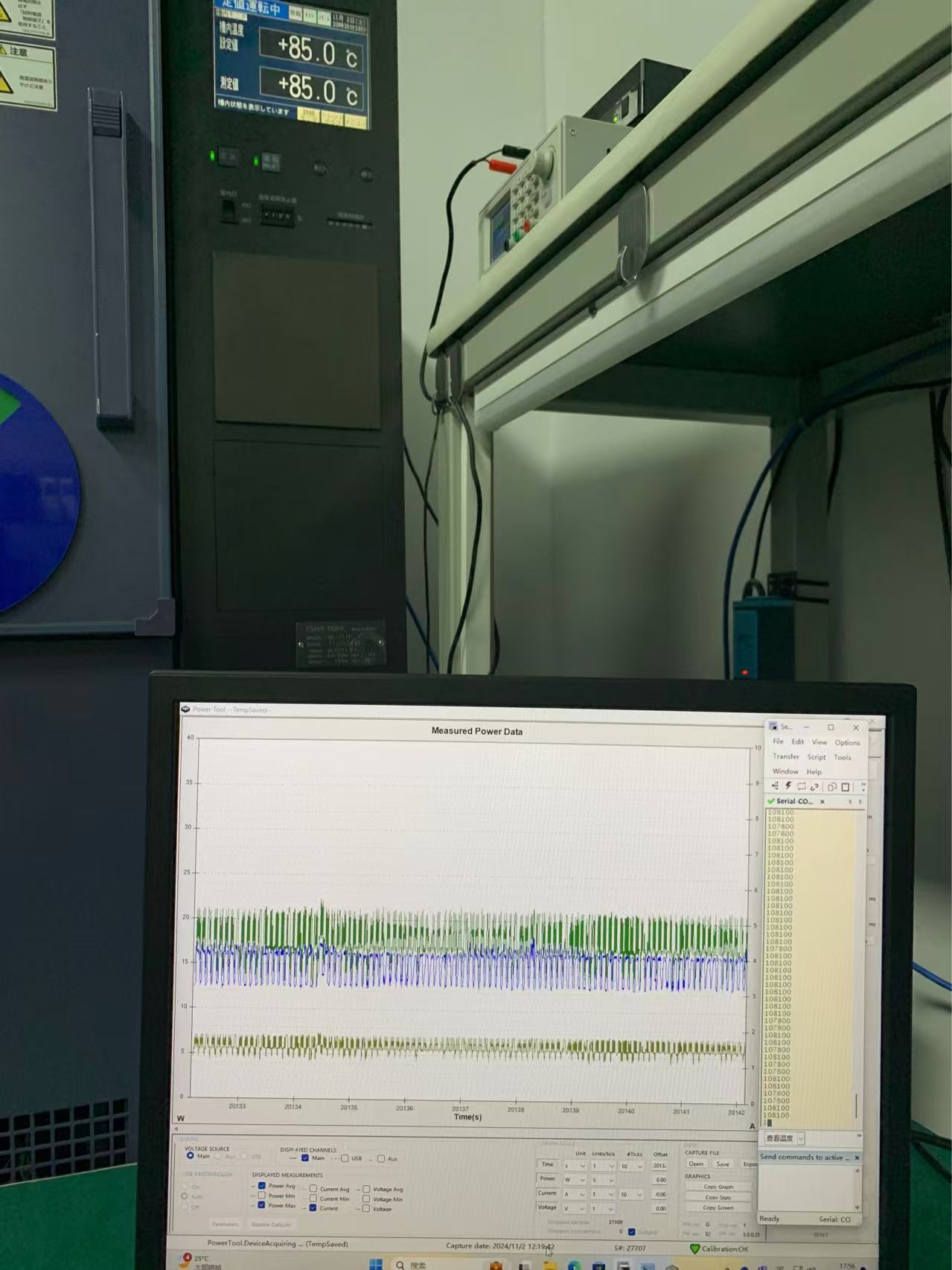

85 degrees Celsius

  • Test result: iperf test, CPU temperature 108.1 degrees Celsius, can work normally, no restart

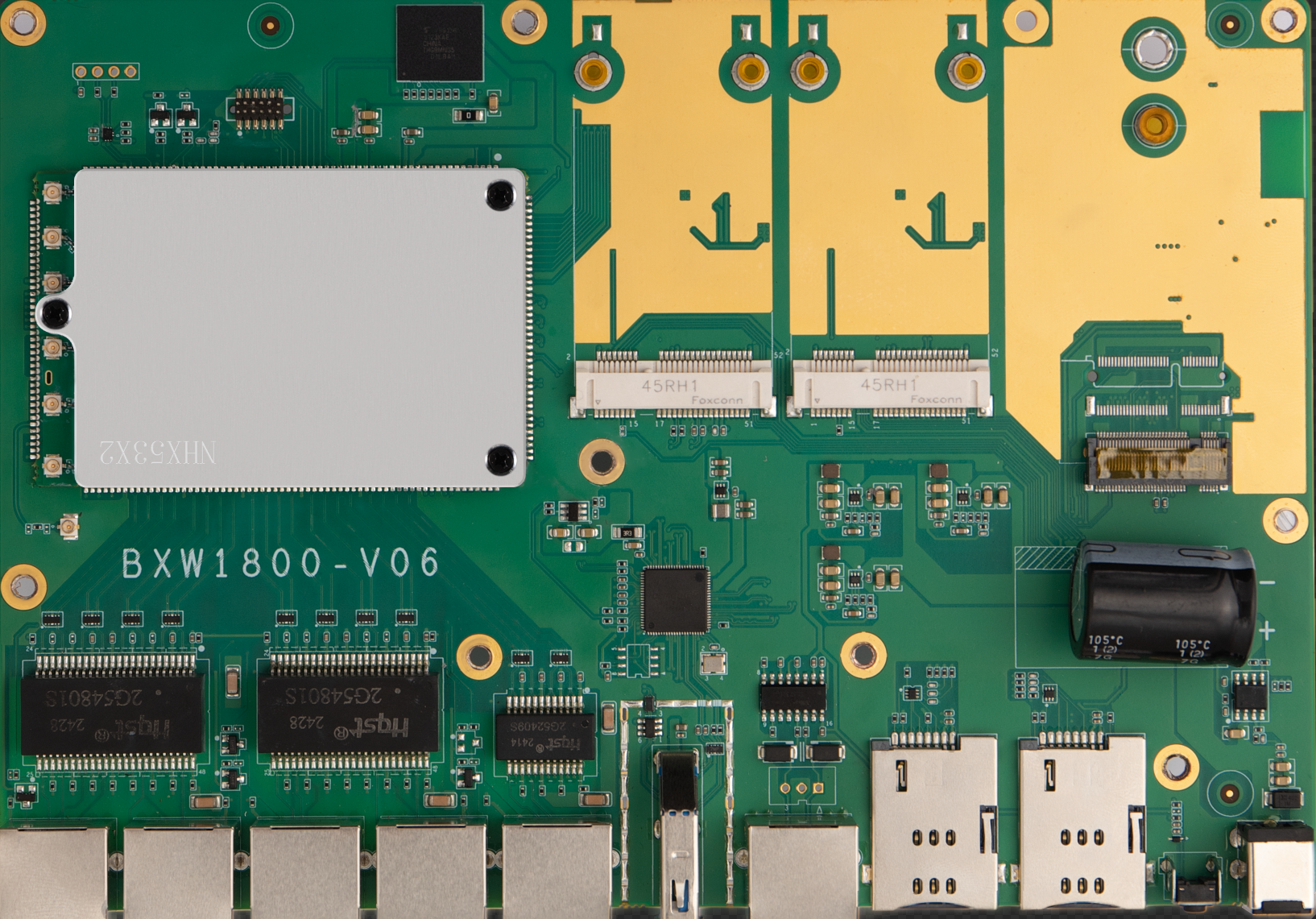

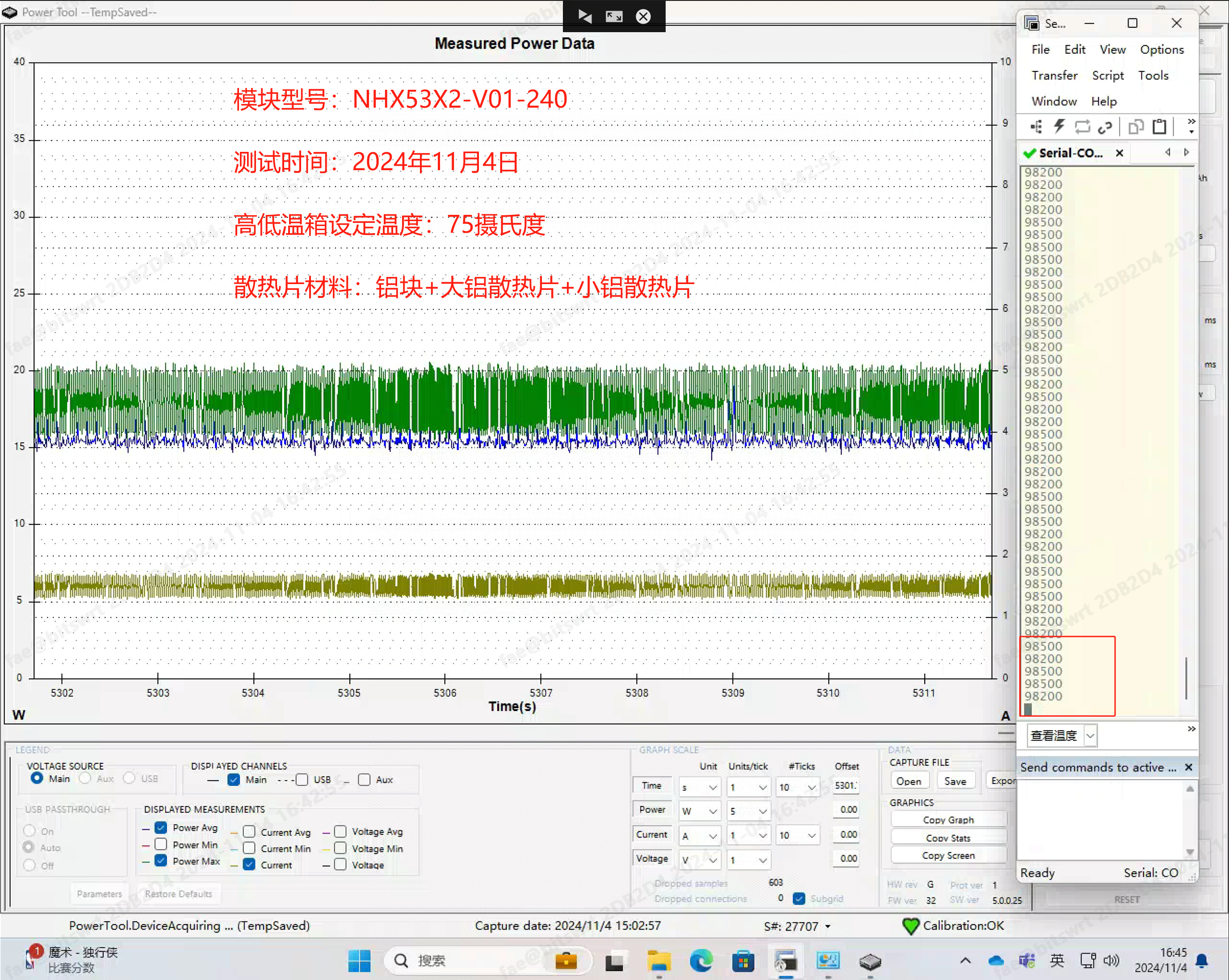

Aluminum block (6061 aluminum alloy) + aluminum heat sink

75 degrees Celsius

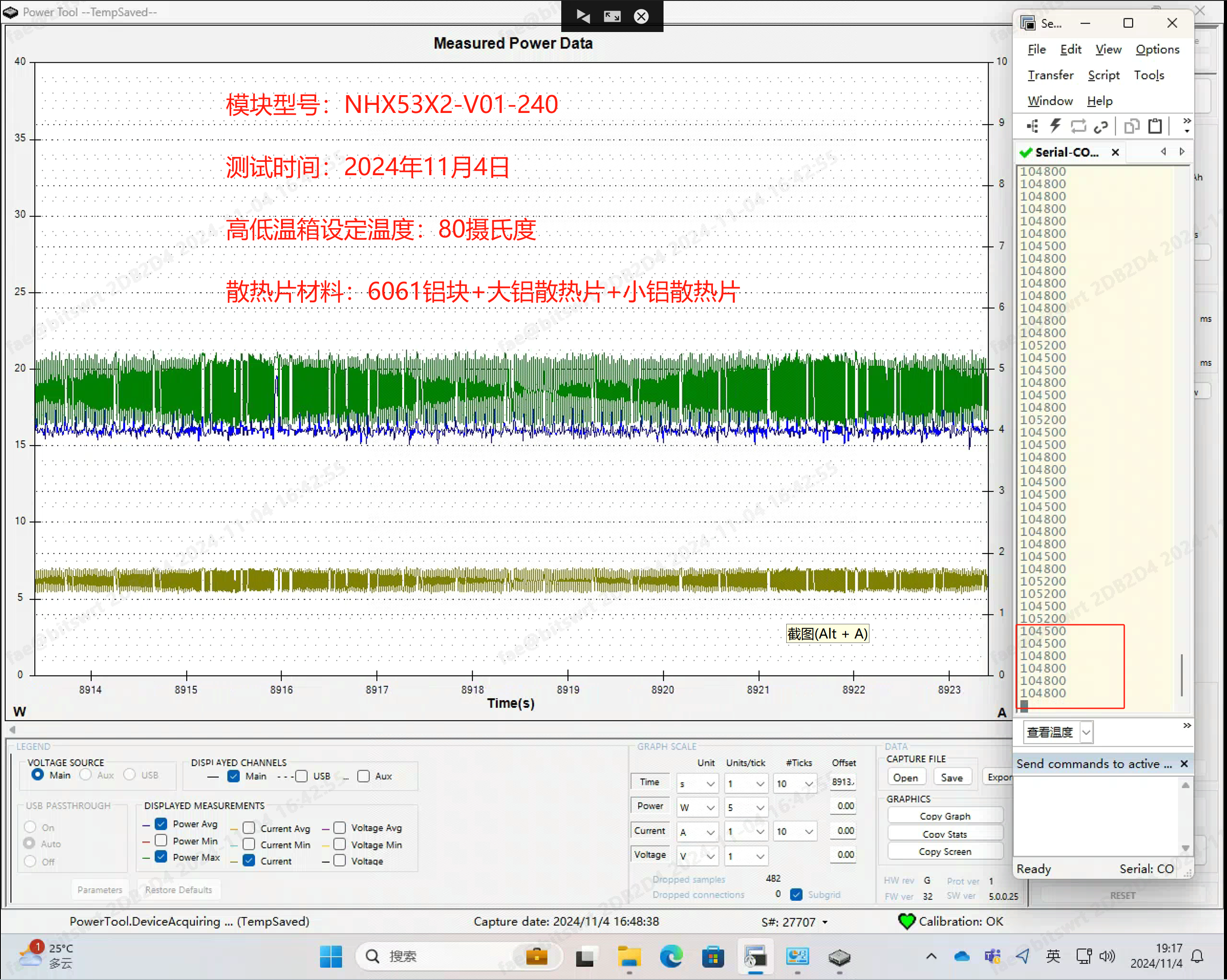

  • Test result: iperf test, CPU temperature 98.2 degrees Celsius, can work normally, no restart






80 degrees Celsius

  • Test result: iperf test, CPU temperature 104.5 degrees Celsius, can work normally, no restart
